Diamond suspensions
- Monocrystalline
- Polycrystalline
- Lubricants
- Ready to use and powders
- 50nm silica suspensions
Product description
The diamond suspensions that we offer are lubricants, thanks to which you can obtain the best quality of the cloth surface. We offer diamond suspensions that contain a high concentration of diamond – in the monocrystalline diamond version and in the polycrystalline diamond version, depending on the customer’s needs. Diamond suspensions are ideal for work where precise grinding and polishing of the sample is important.
Our diamond suspensions are sold as fully ready-to-use products or in powder form. Their composition has been selected in such a way as to maximize the effectiveness of polishing and lapping the finishes as much as possible.
Diamond suspensions are very stable, and the resulting suspension consistency allows for extremely easy and even distribution of the diamond on the surface of the fabric or paper.
The offered diamond suspensions were formed on the basis of water, which contributes to the improvement of the polishing structure, as well as the reduction of the time needed for thorough polishing of the sample.
MD-W Monocrystalline diamond suspension
Water-based diamond suspension, used to polish most materials.
| Part No. | Description | Packaging |
|---|---|---|
| 06.01.110 | Monocrystalline, 0.25 μm | 500 ml |
| 06.01.120 | Monocrystalline, 0.5 μm | 500 ml |
| 06.01.130 | Monocrystalline, 1 μm | 500 ml |
| 06.01.140 | Monocrystalline, 3 μm | 500 ml |
| 06.01.150 | Monocrystalline, 6 μm | 500 ml |
| 06.01.160 | Monocrystalline, 9 μm | 500 ml |

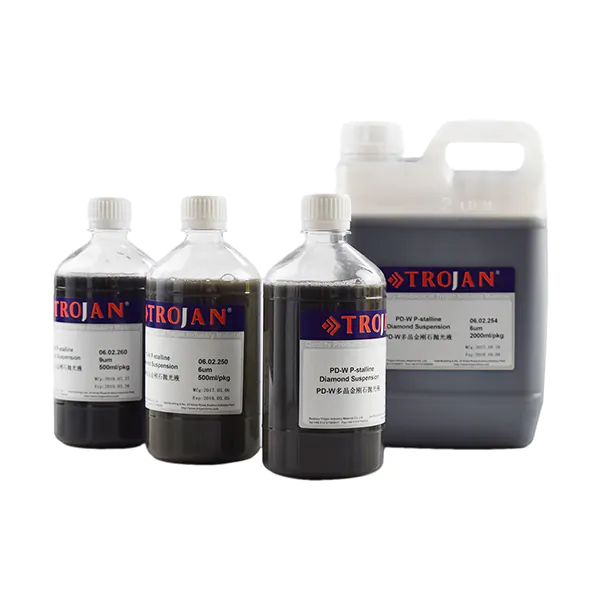

PD-W Polycrystalline diamond suspension
The water-based diamond suspension provides a better polishing structure and faster polishing rate with the same grain.
| Part No. | Description | Packaging |
|---|---|---|
| 06.02.210 | Polycrystalline, 0.25 μm | 500 ml |
| 06.02.220 | Polycrystalline, 0.5 μm | 500 ml |
| 06.02.230 | Polycrystalline, 1 μm | 500 ml |
| 06.02.240 | Polycrystalline, 3 μm | 500 ml |
| 06.02.250 | Polycrystalline, 6 μm | 500 ml |
| 06.02.260 | Polycrystalline, 9 μm | 500 ml |
PL-W Lubricant
The lubricant is used to improve the polishing performance of diamond suspensions, compounds, sprays and coatings. Reduces friction and extends the service life of the polishing cloths. It can be applied by hand or used with an automatic dispenser.
| Part No. | Description | Packaging |
|---|---|---|
| 06.09.510 | Liquid | 500 ml |
| 06.09.520 | Liquid | 1 l |
SP-D Monocrystalline diamond spray
Simple to use, comfortable, with high polishing efficiency.
| Part No. | Description | Packaging |
|---|---|---|
| 06.03.115 | 0.5 μm | 350 ml |
| 06.03.320 | 1 μm | 350 ml |
| 06.03.325 | 2.5 μm | 350 ml |
| 06.03.330 | 3.5 μm | 350 ml |
| 06.03.335 | 5 μm | 350 ml |
| 06.03.340 | 10 μm | 350 ml |
Monocrystalline diamond paste
Water based diamond paste, high polishing speed, good polished structure.
| Part No. | Description | Packaging |
|---|---|---|
| 06.10.030 | 1 μm Blue | 5 g |
| 06.10.040 | 3 μm Green | 5 g |
| 06.10.050 | 6 μm Yellow | 5 g |
| 06.10.060 | 9 μm Red | 5 g |
Polycrystalline diamond paste
Water based diamond paste, high polishing speed, good polished structure.
| Part No. | Description | Packaging |
|---|---|---|
| 06.10.110 | 1 μm Black | 10 g |
| 06.10.130 | 3 μm Black | 10 g |
| 06.10.160 | 6 μm Black | 10 g |
| 06.10.190 | 9 μm Black | 10 g |
A-OW Aluminum suspension
A water-based suspension. Used for copper, tin and other soft metals or plastics such as PCB, SMT, semiconductors.
| Part No. | Description | Packaging |
|---|---|---|
| 06.04.210 | 0.05 μm | 500 ml |
| 06.04.220 | 0.3 μm | 500 ml |
| 06.04.230 | 1 μm | 500 ml |
AO-P Deglomerated alumina powder for polishing
Fine alumina polishing powder, strict particle size distribution.
Mix the powder with distilled water before use.
| Part No. | Description | Packaging |
|---|---|---|
| 06.13.011 | 0.05 μm | 500 g |
| 06.13.021 | 0.3 μm | 500 g |
| 06.13.031 | 1 μm | 500 g |
SO T401 Colloidal silica suspension
Colloidal silica suspension with a pH of 10.5 provides the chemical-mechanical polishing effect of titanium, stainless steel etc.
| Part No. | Description | Packaging |
|---|---|---|
| 06.05.310 | 50 nm | 500 ml |
| 06.05.320 | 50 nm | 1 l |
| 06.05.330 | 50 nm | 5 l |
SO A439 Colloidal Silica Slurry
The colloidal suspension of silica with a pH of 10.2 ensures the chemical-mechanical polishing effect of materials such as non-ferrous metals, aluminum, PCB, etc.
| Part No. | Description | Packaging |
|---|---|---|
| 06.07.310 | 50 nm | 500 ml |
| 06.07.320 | 50 nm | 1 l |
| 06.07.330 | 50 nm | 5 l |
What suspensions do we sell?
At Endo-Tech, we sell suspensions in ready-to-use products or as powders. Their compositions are designed to increase the efficiency of individual processes. Our product range includes, for example, diamond water , which helps achieve high-quality cloth surfaces. Diamond water suspensions contain a high concentration of diamonds in various forms (monocrystalline or polycrystalline). It’s an ideal product for work requiring precise grinding and polishing of samples.
Colloidal suspension, on the other hand, is ideal for finishing polishing. It can be used on any type of material because it doesn’t crystallize and is easy to apply. It provides chemical and mechanical polishing effects on titanium, stainless steel, and more.
What are the suspensions from our offer suitable for?
Slurries are indispensable products that make diamond polishing efficient and quick. Their stable structure allows for easy application while simultaneously distributing the diamond evenly across the surface of fabrics or paper. Each slurry in our range is water-based, improving the polishing texture and reducing the time required to polish the sample.
At Endo-Tech, we offer lubricants in the form of diamond powders and ready-made suspensions. These allow for efficient diamond polishing of various surfaces and achieve the desired end result. We encourage you to explore the entire range of suspensions from Endo-Tech.
