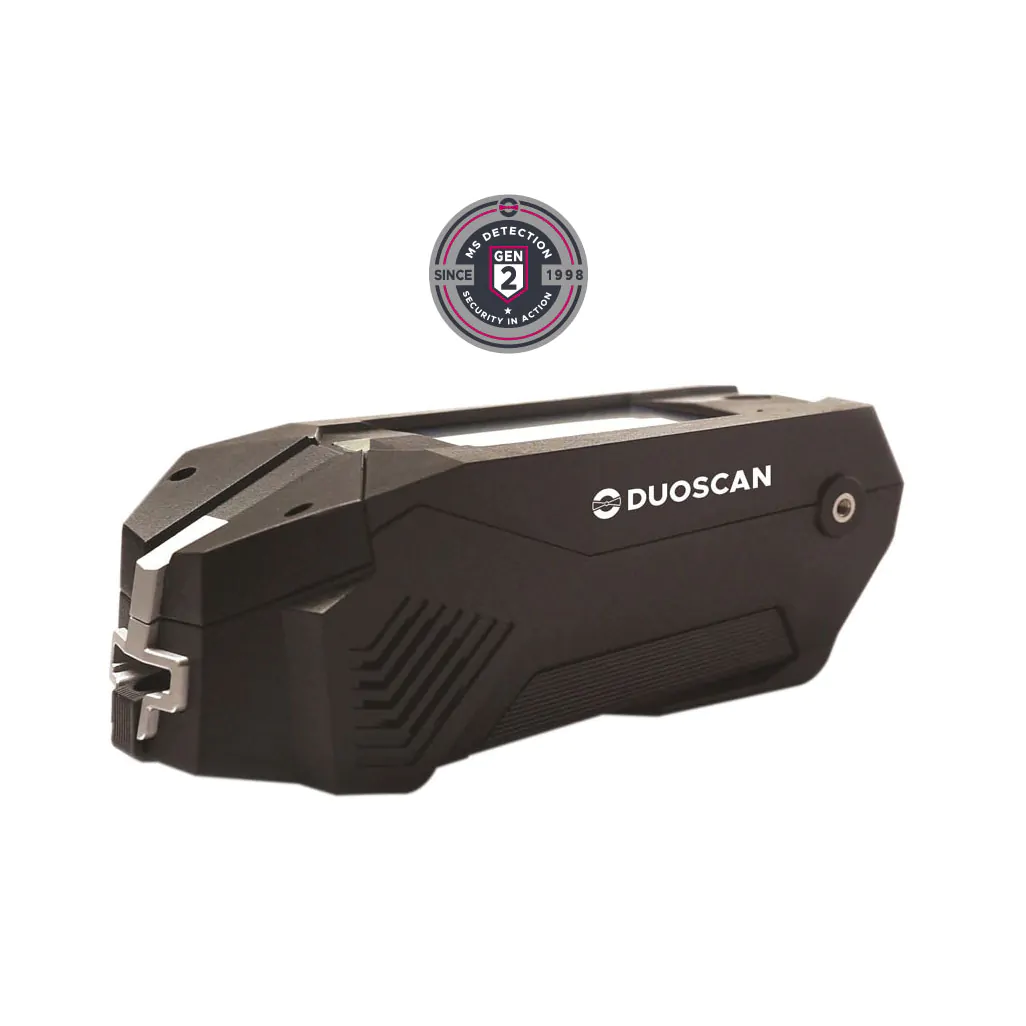

DUOSCAN – Detector of trace amount of explosives and drugs
- Light and handy (850 g with battery)
- No radioactive source
- Fast warm-up time
- Automatic calibration
- Fast cleaning
- Easy to use
- Low maintenance costs
Product description
DUOSCAN™ is a rugged detector of explosives, including improvised explosives, narcotics, and contraband, capable of detecting trace particles and vapors of hazardous substances. Its award-winning and patented HF-QCM nanotechnology sensors offer state-of-the-art detection and identification capabilities for a wide range of threats, including military and synthetic explosives, peroxides, nitrates, and narcotics such as fentanyl and synthetic opioids.
Thanks to its short analysis time and fast clearing process, DUOSCAN™ enables operators to make rapid decisions directly at the scene. With thousands of units deployed in over 42 countries, DUOSCAN™ is the most trusted explosives and narcotics detector used to combat terrorism, drug trafficking, and smuggling.
Explosives and Narcotics Detector
DUOSCAN™ provides cutting-edge detection technology to security professionals, even in conditions where detection was previously impossible due to harsh environmental factors. Our DUOSCAN detector is resistant to extreme temperatures, strong winds, sand, rain, as well as shocks and drops. It is indispensable in situations requiring reliable, rugged, yet lightweight and portable equipment.
It detects narcotics such as:
cocaine, heroin, amphetamine, methamphetamine, ecstasy, THC, MDA, LSD, and more.
DUOSCAN can also be extended to detect other drugs by updating its threat library. It reliably detects both military and plastic explosives such as: TNT, RDX, Semtex, C4, PETN, and Derasheet.
Key Features of the DUOSCAN Detector:
- Advanced and environmentally friendly HF-QCM nanotechnology sensors
- Efficient sampling (up to 30 inspections per sampling blister)
- Radiation-free operation
- Lightweight and portable (850 grams with battery)
- Fast warm-up time
- Automatic calibration
- Easy and quick cleaning process
- User-friendly interface
- Low operating costs (reusable sampling probe)
- Designed for use in harsh environments (humidity, extreme temperatures, dust, etc.)
- Built-in self-diagnostic system
DUOSCAN is a high-performance sample collection detector for explosives and narcotics. It allows real-time analysis of collected samples during inspections. Its mobility and versatility enable reliable measurements in challenging field conditions.
Sampling Methods:
Solid particle collection is performed by swiping the probe over the surface to be tested, then inserting the sample into the device for analysis. Commonly tested surfaces include clothing, luggage, cargo, ID cards, tickets, and passports.
Vapor sampling is done by drawing air through the probe, which is then inserted into the device for analysis. Typical test surfaces include cargo, containers, car trunks, and storage units.
Specification
| technology | Quartz Microbalance (HF-QCM) No carrier gas, no radioactive sources |
|---|---|
| sampling-modes | Solid particles, Particulate vapors |
| solid-particles | Trace sampling with cost-effective sampling swabs |
| particulate-vapors | Vapor sampling with a portable and battery operated steam sampler; supplied with two types of sampling probes and a charger |
| detected-explosives | Military and plastic explosives, including: TNT, Tetryl, RDX, C4, PETN, Semtex, HMX, Detasheet, Nitroglycerin and others, Nitrate-based explosives, including: ammonium nitrate, urea nitrate and others, Peroxide-based explosives, including: TATP, HMTD and others, Programmed hazardous substances depend on the detector version and the regulatory body, Propellants and taggants including: Black and smokeless powder, EGDN and others |
| drugs-detected | Additional drugs according to the Extensible Threat Library, Heroin, cocaine, amphetamine, methamphetamine, ketamine, MDA, THC, LSD, ecstasy and others *, Programmed hazardous substances depend on the detector version and the regulatory body, Synthetic opioids: Fentanyl, Carfentanyl, W-18 and others |
| tenderness | * Particles: low nanogram (ng) range * Pairs: low range parts of a billion (ppb) |
| false-alarm-level | Less than 2% |
| time-of-analysis | 7-15 sec. or less |

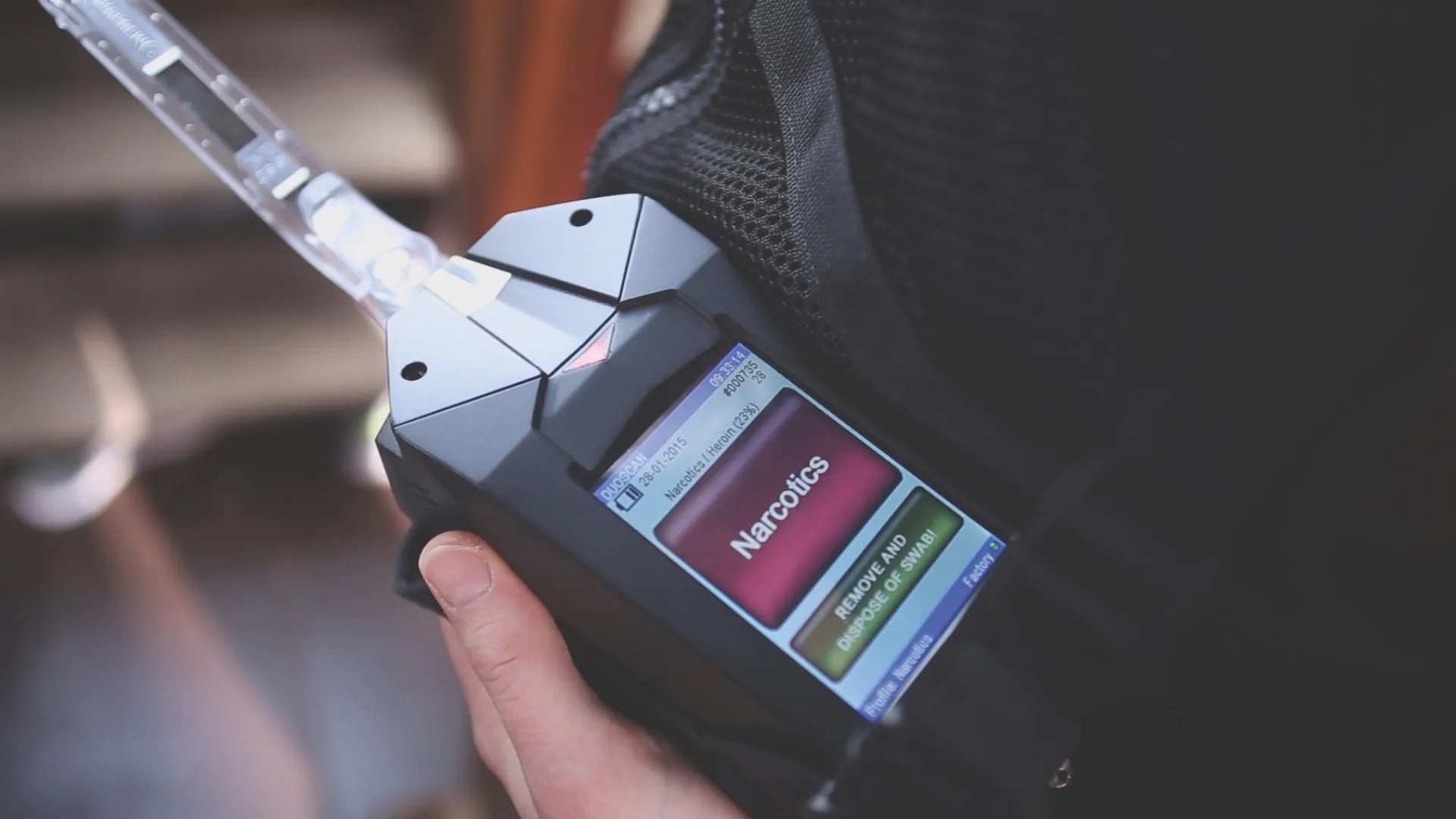

| display | 3.5 ”high resolution color touch screen |
| printer | Optional printout of results using a remote printer. |
| alarm-method | Configurable audible and on-screen alarm |
| alarm-type | Audible and visual with substance identification |
| boot-time | Less than 2 minutes |
| language | Polish, English, French, Spanish, Italian, Portuguese, Russian, Chinese, Korean, Japanese, Arabic and more |
| data-storage | Unlimited data logging including date, time, analysis results and system status |
| data-transfer | Micro USB 2.0. Optional Bluetooth and / or Wi-Fi |
| rated-voltage | 100-240V AC, 50-60Hz |
| battery | 12V Li-ion battery, 6 to 8 hours of use in the field Possible replacement during operation |
| ups | Optional UPS – 230 V, 50 Hz input. |
| humidity | Less than 95% non-condensing |
| temperature | -20 ° C to + 55 ° C (-4 ° F to + 131 ° F) |
| height | Up to 4,500 m (15,000 ft) |
| weight | 850 grams (1.87 lbs) with the battery |
| dimensions-wxdxh | (L x W x H): 19.75 x 8.89 x 7.05 cm (7.78 "x 3.50" x 2.78 ") |
| suitcase | Supplied with a sturdy MILSPEC case |
| cart | Optional adjustable workstation with wheels and lockable cabinet. |
| security | No hazardous parts and tamper-proof housing |
| certification | CE mark, EMC and FCC certification Manufacturing standards ISO 9001: 2015 |
