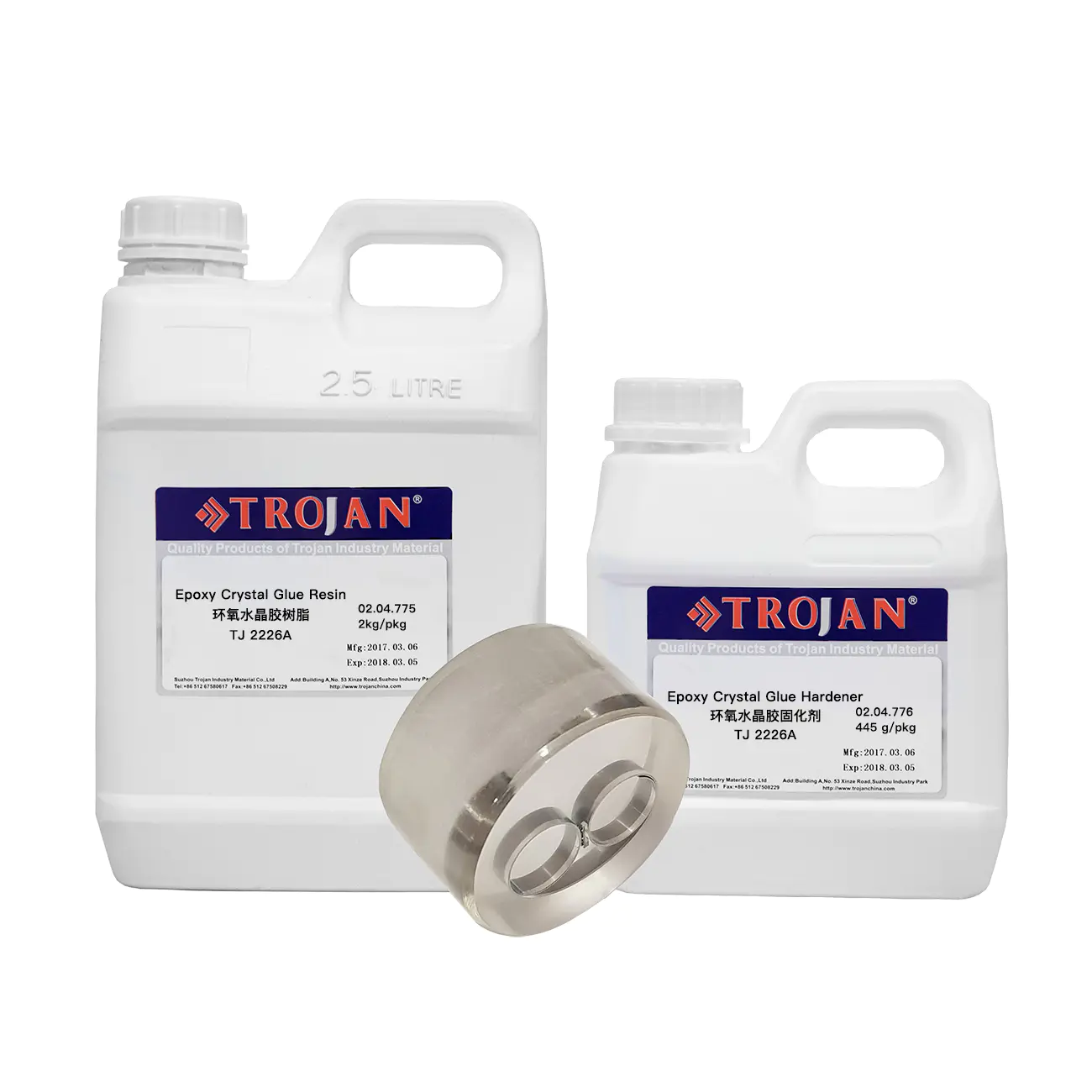

TJ 2226
Epoxy resin (4.5:1)
The epoxy resin is characterized by excellent fluidity, outstanding chemical properties, strong adhesion to substrates, low shrinkage, and high transparency.
Product description
Features: Colorless and transparent, a general-purpose slow-curing epoxy resin.
Curing time: 4-8 hours
| Order No: | Description | Package |
|---|---|---|
| 02.04.773 | Epoxy Resin, Liquid | 1 kg |
| 02.04.774 | Epoxy Hardener, Liquid | 230 g |
| 02.04.777 | Epoxy Resin, Liquid | 4,5 kg |
| 02.04.778 | Epoxy Hardener, Liquid | 1 kg |
Specification
| Material | TJ 2226 |
|---|---|
| Part A | Epoxy Resin, Liquid |
| Part B | Hardener, Liquid |
| A : B ( w/w ) | 4,5 : 1 |
| Mixing Time | 10-20 min |
| Curing Time (25˚C) | 4-8h |
| Peak Temperature | 90 ℃ |
| Hardness (Shore D) | 82 |
| Edge Retention | Excellent |
| Φ30mm mold | under room temperature conditions of 20-25℃ |
| The Trojan DSV10 | solvent can be used to dissolve resin that has already cured |
