Plate adapters
- Three diameters: 200, 250, 300 mm
- Various mounting methods
- For sandpaper
- For polishing dresses
- For diamond blades
- Easy to replace
Product description
Adapters,
Adapter systems for sanding papers, diamond discs, and polishing cloths that facilitate mounting and removal depending on the mounting method.
Discs come in three sizes: 200 mm, 250 mm, and 300 mm diameter.

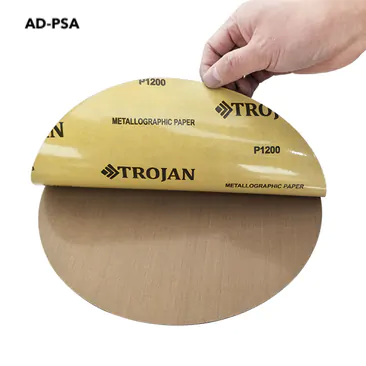

AD-PSA Plate
The AD-PSA system allows easy removal of sanding papers and polishing cloths with adhesive, without leaving residues.
| Part No. | Description | Packaging |
|---|---|---|
| 04.08.410 | 200 mm | 1 pc. |
| 04.08.413 | 250 mm | 1 pc. |
| 04.08.420 | 300 mm | 1 pc. |

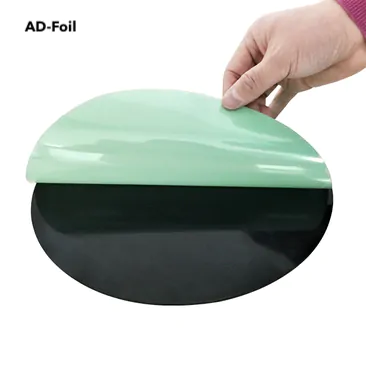

AD-Foil Plate
The AD-Foil system is designed for SiC sanding papers or diamond discs based on PET. If the AD-Foil transfer plate is dirty, simply wash it with water.
| Part No. | Description | Packaging |
|---|---|---|
| 04.08.422 | 200 mm | 1 pc. |
| 04.08.430 | 250 mm | 1 pc. |
| 04.08.432 | 300 mm | 1 pc. |

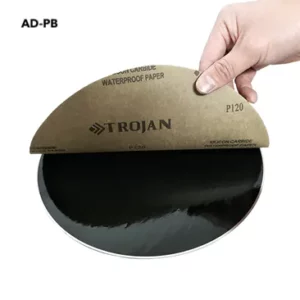

AD-PB Plate
The AD-PB system is intended for standard SiC papers or diamond discs. The surface of AD-PB has a reusable adhesive layer; the PB disc can be stuck onto the surface and easily removed. If the surface is dirty, simply wash it with water.
| Part No. | Description | Packaging |
|---|---|---|
| 04.08.310 | 200 mm | 1 pc. |
| 04.08.320 | 250 mm | 1 pc. |
| 04.08.330 | 300 mm | 1 pc. |
Specification
| DiaNi | Nickel plated Equivalents: Struers: Diamond Pads Buehler: DGD Mosaic |
|---|---|
| DiaRe | In a resin matrix Equivalents: Struers: MD Piano Buehler: Apex ™ DGD ATM: Galaxy |
