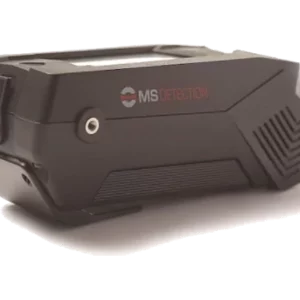

DUOSCAN – Detector of trace amount of explosives and drugs

● Light and handy (850 g with battery)
● No radioactive source
● Fast warm-up time
● Automatic calibration
● Fast cleaning
● Easy to use
● Low maintenance costs

DUOSCAN ™ is a detector of explosives, including improvised, drugs and contraband, capable of detecting particles and vapors of hazardous substances. HF-QCM's award-winning and patented nanotechnology sensors provide the latest in the detection and identification of threats including military and synthetic explosives, peroxides and nitrates, as well as narcotic drugs including fentanyl and synthetic opioids.

DUOSCAN ™, thanks to a short analysis time and a quick cleaning process, allows operators to make quick decisions on the scene of an event. With thousands of units located in over 42 countries, DUOSCAN ™ is the most trusted explosives and drug detector and vapor detector to combat terrorism, drug trafficking and smuggling.

Drug and Explosive Detector
It guarantees the most modern detection functions to all security specialists, wherever detection has not been possible due to difficult weather conditions. The DUOSCAN drug and explosives detector we offer is resistant to extreme temperatures, strong wind, sand, rain as well as all shocks and falls. It is irreplaceable in all situations that require reliable, resistant, light and handy equipment. Detects drugs such as cocaine, heroin, amphetamines, methamphetamine, ecstasy, THC, MDA, and LSD. DUOSCAN can also detect other intoxicants, after further expanding its capabilities (threat libraries). It is reliable in detecting both military and plastic explosives such as: TNT, RDX, Semtx, C4, PETN and Derasheet.

Characteristic features of the DUOSCAN detector:
● modern and environmentally friendly technology of HF-QCM nanosensors
● efficient sampling (up to 30 controls on one blister)
● no radiation source
● light and handy (weighs 850 grams with the battery)
● fast warm-up time
● automatic calibration
● trouble-free and quick cleaning
● ease of use
● low operating costs (reusable sampler)
● the ability to work in a difficult environment (moisture, extreme temperatures, dust, etc.)
● automatic diagnostic system

DUOSCAN is an explosives and drug detector with high sampling efficiency. It enables real-time analysis of the collected sample while being inspected. Its mobility and flexibility enable convenient measurement in a hostile environment.

The collection of solid particles is performed by moving the probe over the test surface and inserting the sample into the tool for analysis. The most frequently examined surfaces are all kinds of clothes, luggage, cargo, ID cards, tickets and passports.

The vapor sampling is the suction of the vapor into a sampler which is then placed in the analyzer. Typical surfaces to be tested are cargo, containers, car carriers and containers.


Quartz Microbalance (HF-QCM) No carrier gas, no radioactive sources

Sampling modes

Solid particles, Particulate vapors

Solid particles

Trace sampling with cost-effective sampling swabs

Particulate vapors

Vapor sampling with a portable and battery operated steam sampler; supplied with two types of sampling probes and a charger

Detected explosives

Military and plastic explosives, including: TNT, Tetryl, RDX, C4, PETN, Semtex, HMX, Detasheet, Nitroglycerin and others, Nitrate-based explosives, including: ammonium nitrate, urea nitrate and others, Peroxide-based explosives, including: TATP, HMTD and others, Programmed hazardous substances depend on the detector version and the regulatory body, Propellants and taggants including: Black and smokeless powder, EGDN and others

Drugs detected

Additional drugs according to the Extensible Threat Library, Heroin, cocaine, amphetamine, methamphetamine, ketamine, MDA, THC, LSD, ecstasy and others *, Programmed hazardous substances depend on the detector version and the regulatory body, Synthetic opioids: Fentanyl, Carfentanyl, W-18 and others


* Particles: low nanogram (ng) range * Pairs: low range parts of a billion (ppb)

False alarm level

Less than 2%

Time of analysis

7-15 sec. or less

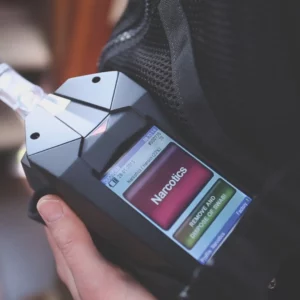

3.5 ”high resolution color touch screen


Optional printout of results using a remote printer.

Alarm method

Configurable audible and on-screen alarm

Alarm type

Audible and visual with substance identification

Boot time

Less than 2 minutes


Polish, English, French, Spanish, Italian, Portuguese, Russian, Chinese, Korean, Japanese, Arabic and more

Data storage

Unlimited data logging including date, time, analysis results and system status

Data transfer

Micro USB 2.0. Optional Bluetooth and / or Wi-Fi

Rated voltage

100-240V AC, 50-60Hz


12V Li-ion battery, 6 to 8 hours of use in the field Possible replacement during operation


Optional UPS – 230 V, 50 Hz input.


Less than 95% non-condensing


-20 ° C to + 55 ° C (-4 ° F to + 131 ° F)


Up to 4,500 m (15,000 ft)


850 grams (1.87 lbs) with the battery

Dimensions WxDxH

(L x W x H): 19.75 x 8.89 x 7.05 cm (7.78 "x 3.50" x 2.78 ")


Supplied with a sturdy MILSPEC case


Optional adjustable workstation with wheels and lockable cabinet.


No hazardous parts and tamper-proof housing


CE mark, EMC and FCC certification Manufacturing standards ISO 9001: 2015
